GeNetix 10Scene Wall Plate

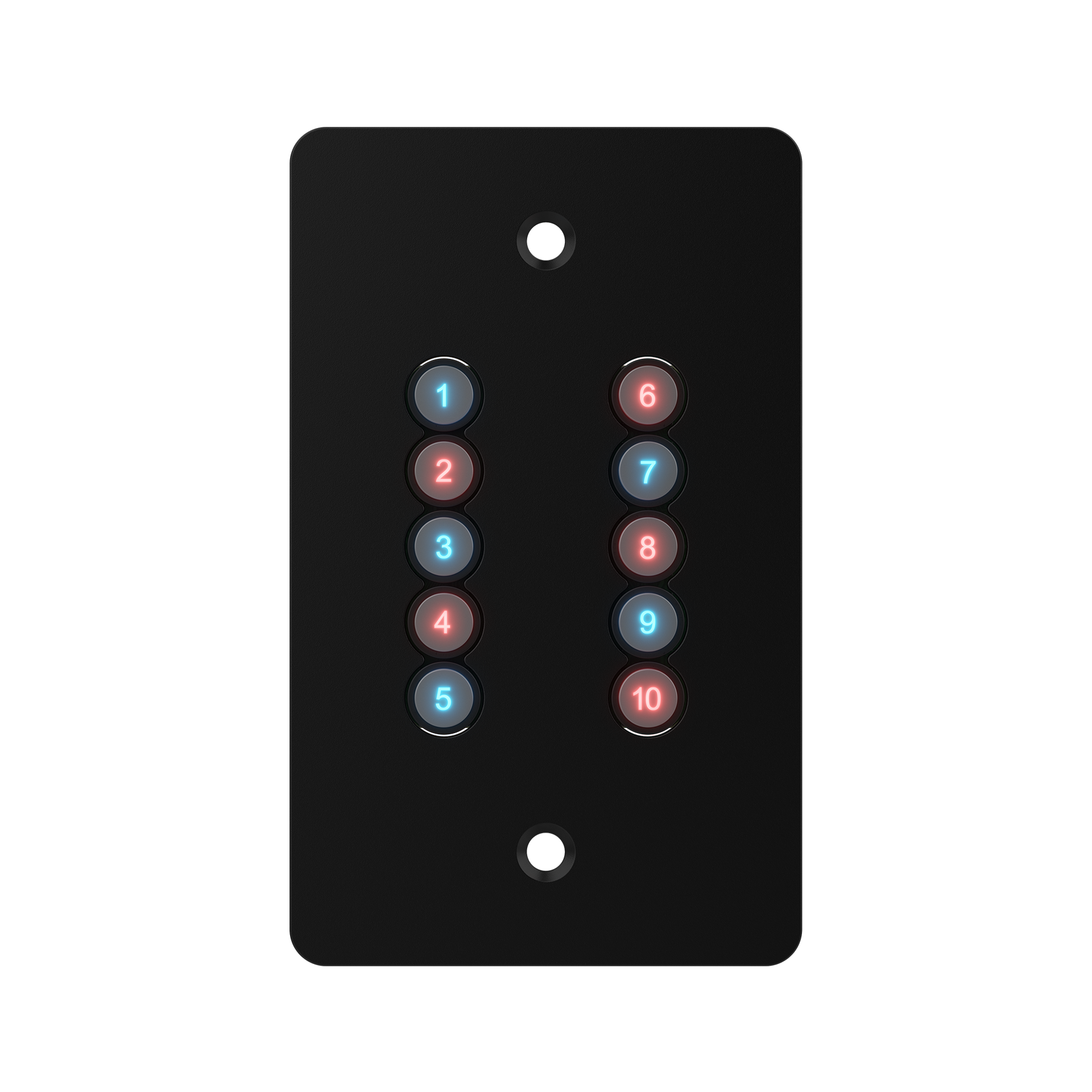

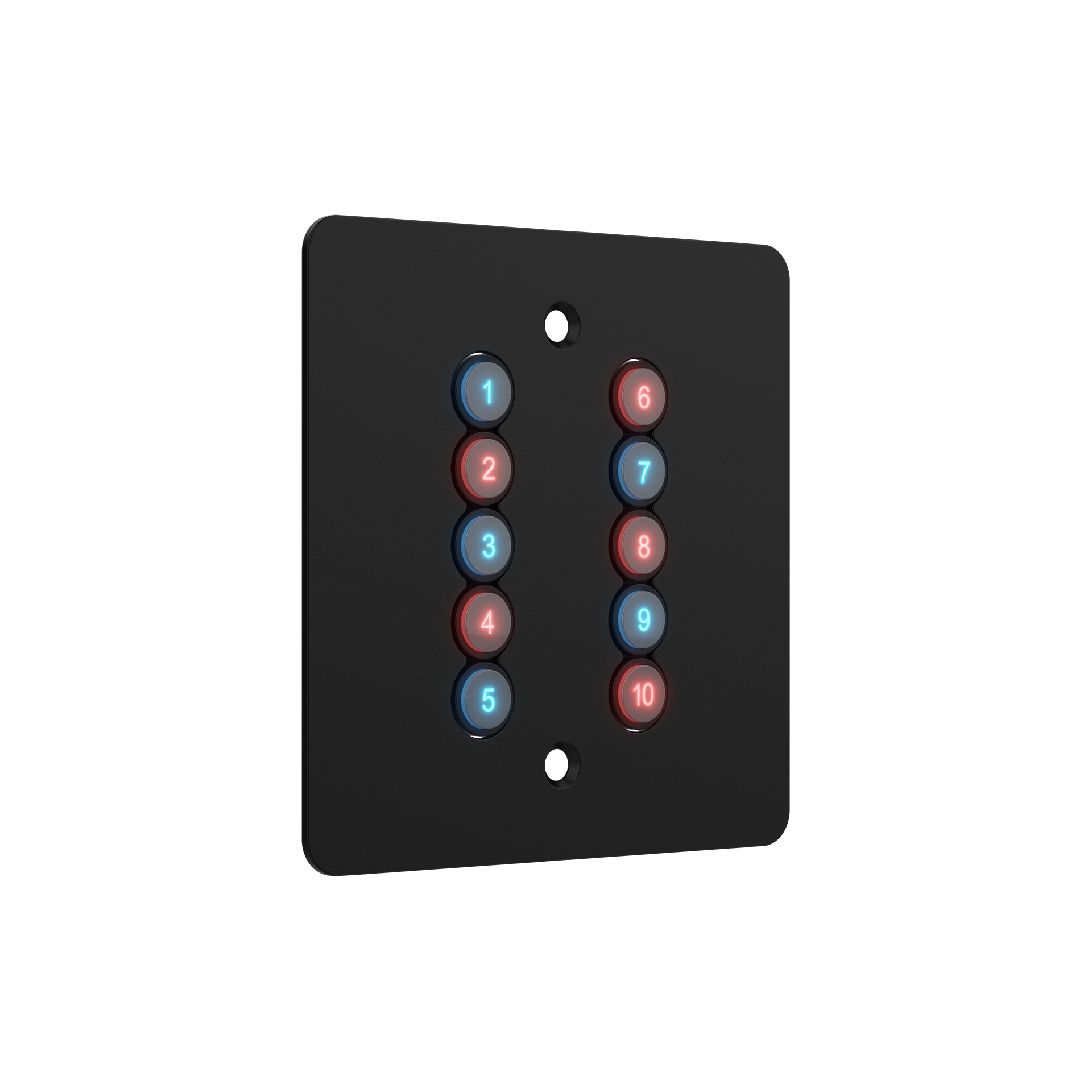

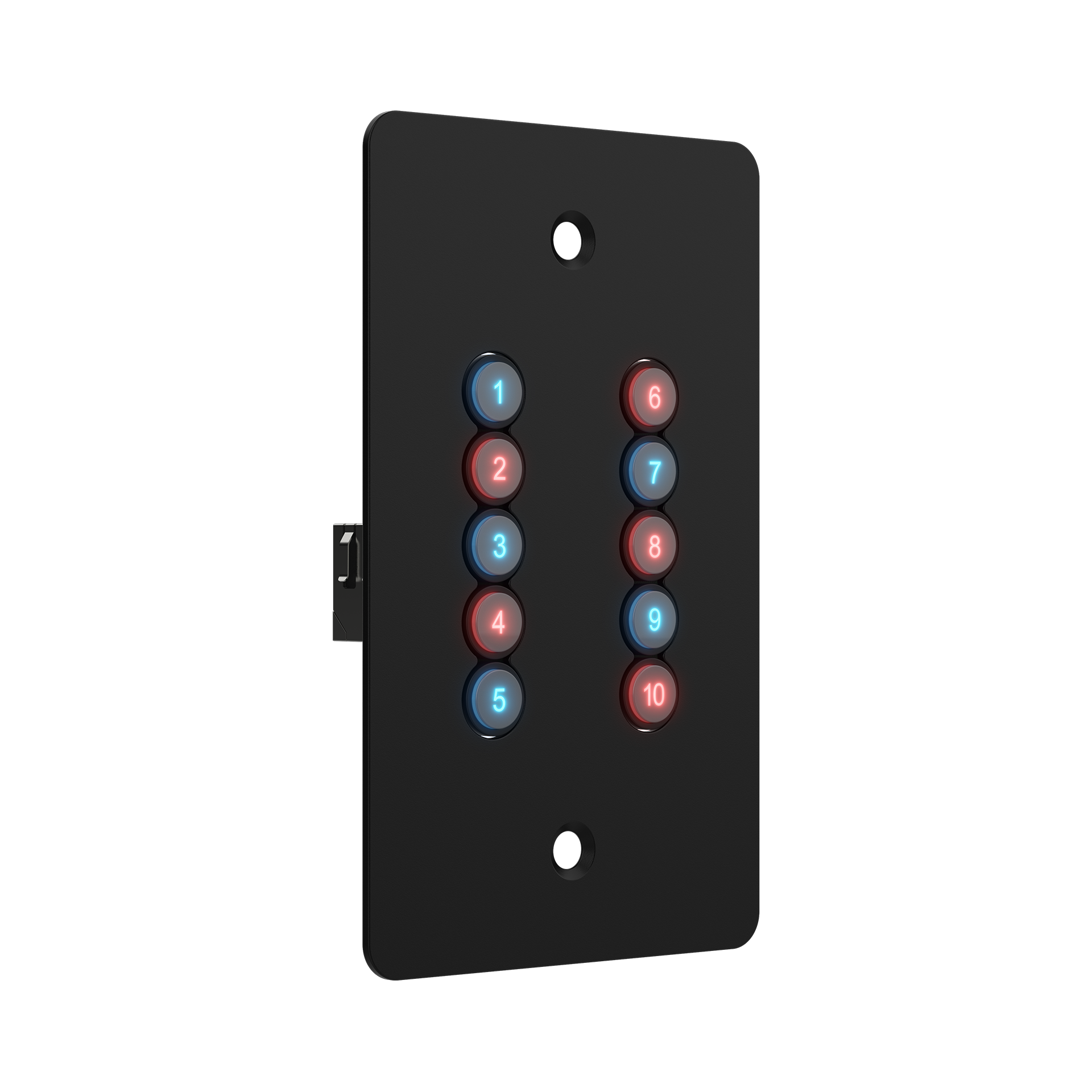

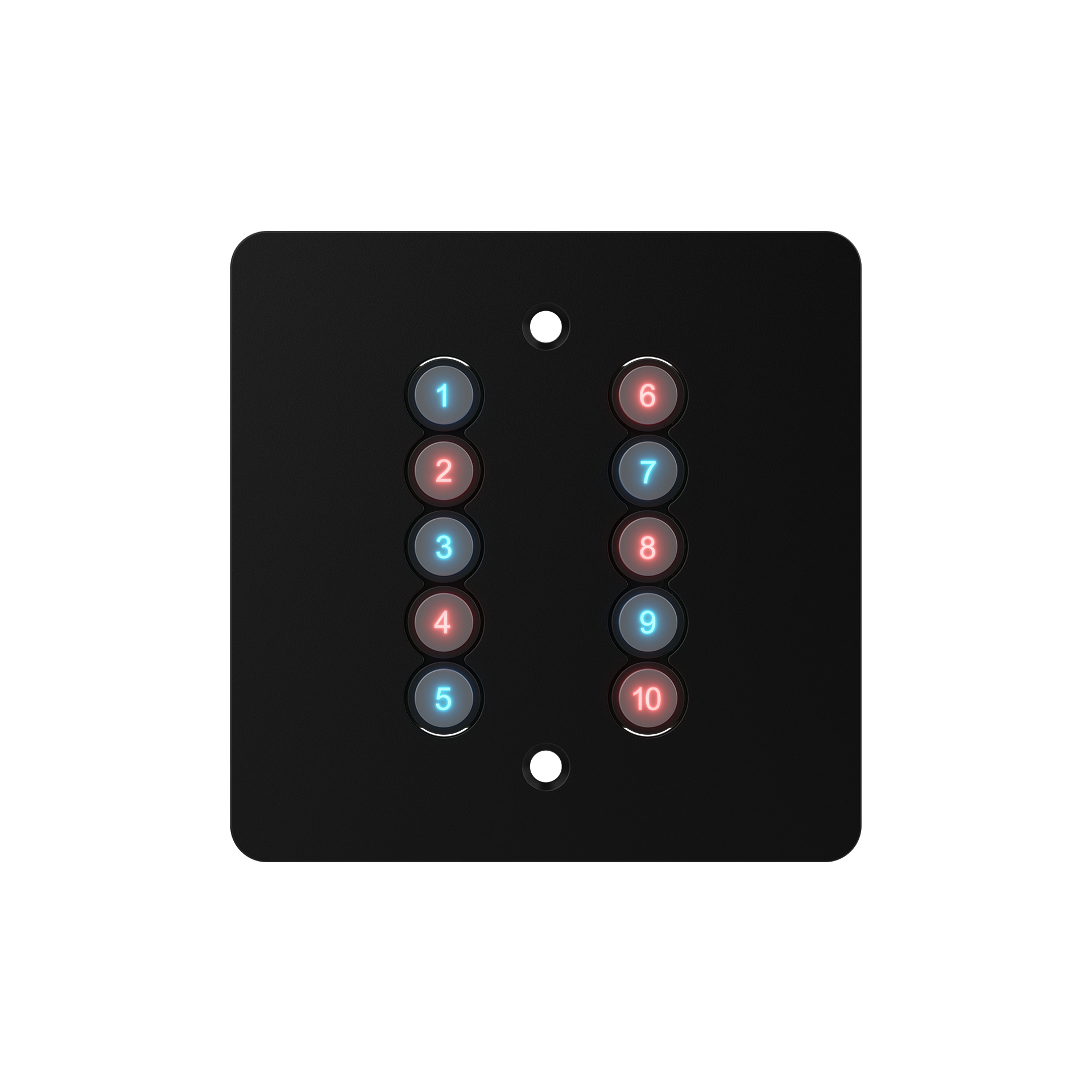

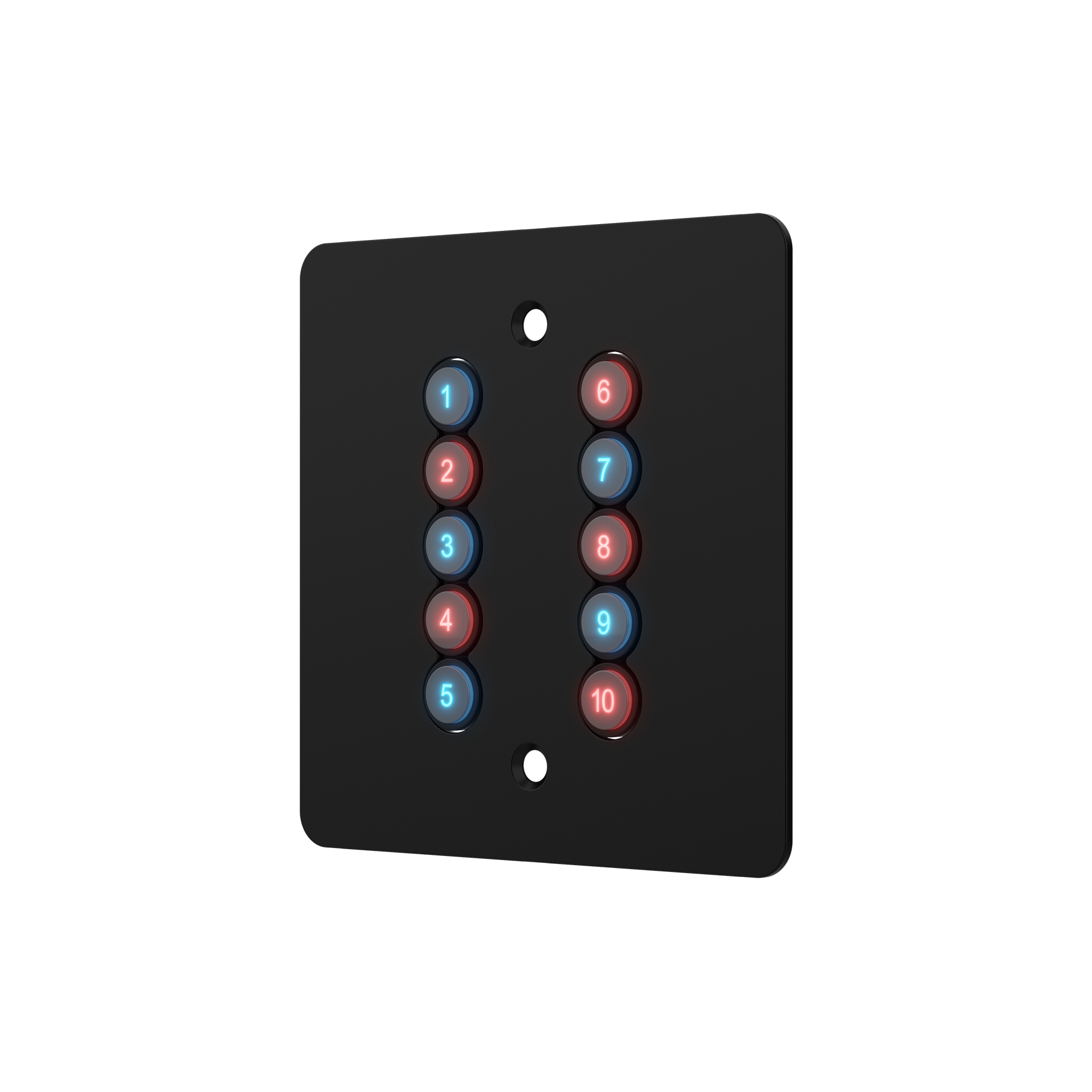

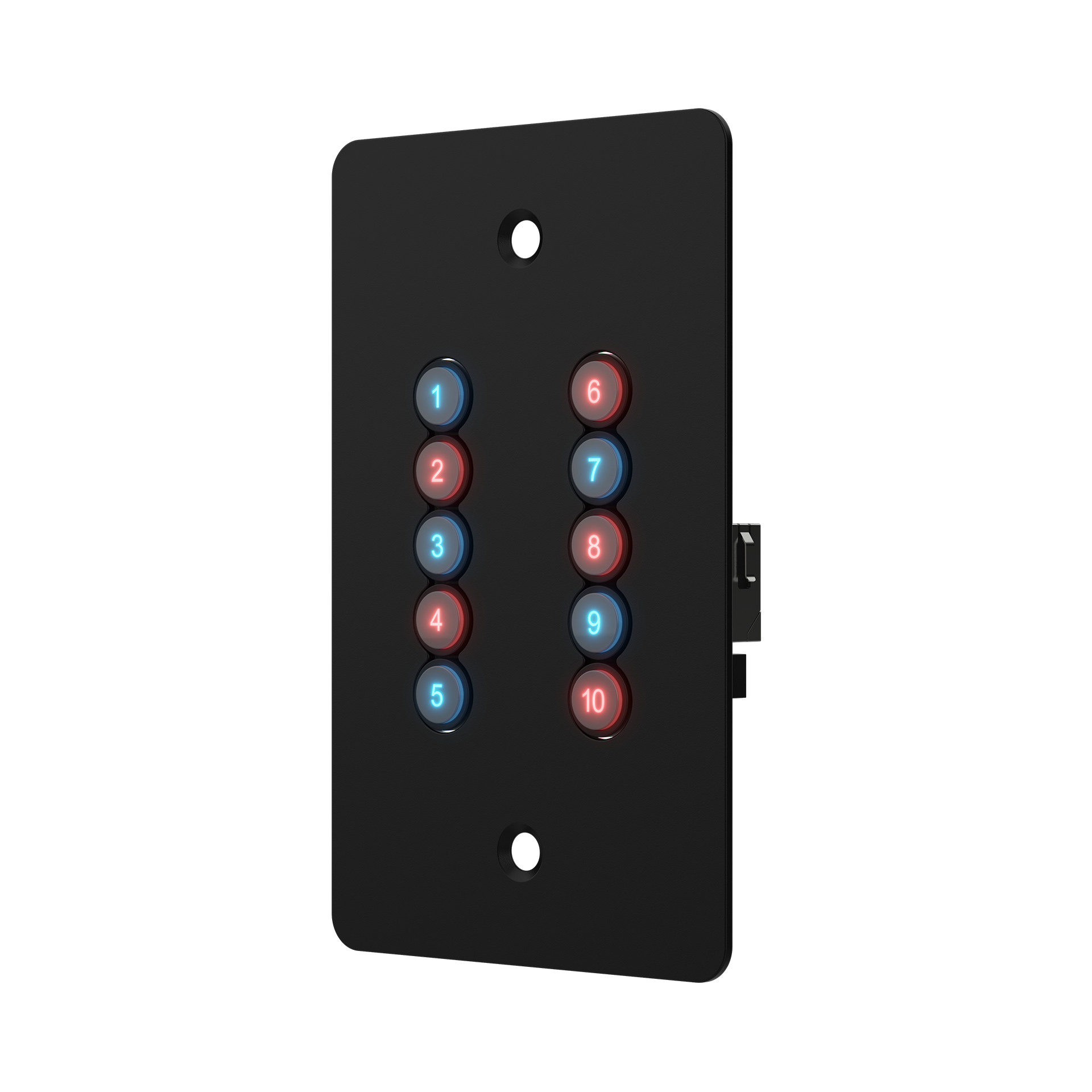

The 10Scene Wall Plate features ten 10Scene trigger buttons, with dual colour LED status indication.
Connect 10Scene wall plates directly to the MagicQ/QuickQ Racks and DINs or to the GeNetix Gateway, GN5 or GN10 Nodes, where it can then integrate with any MagicQ or QuickQ system for remote Scene activation.
Each 10Scene Wall Plate can be individually ID’d allowing up to 50 zones when connected to MagicQ Systems, 10 when connected to QuickQ Systems and 1 with GeNetix Systems.
Supplied in a dual pack available for EU, UK and US Backbox fits.
Verfügbare Modelle
Teil Nummer | Beschreibung |
CS300107 | Markt: Vereinigtes Königreich |

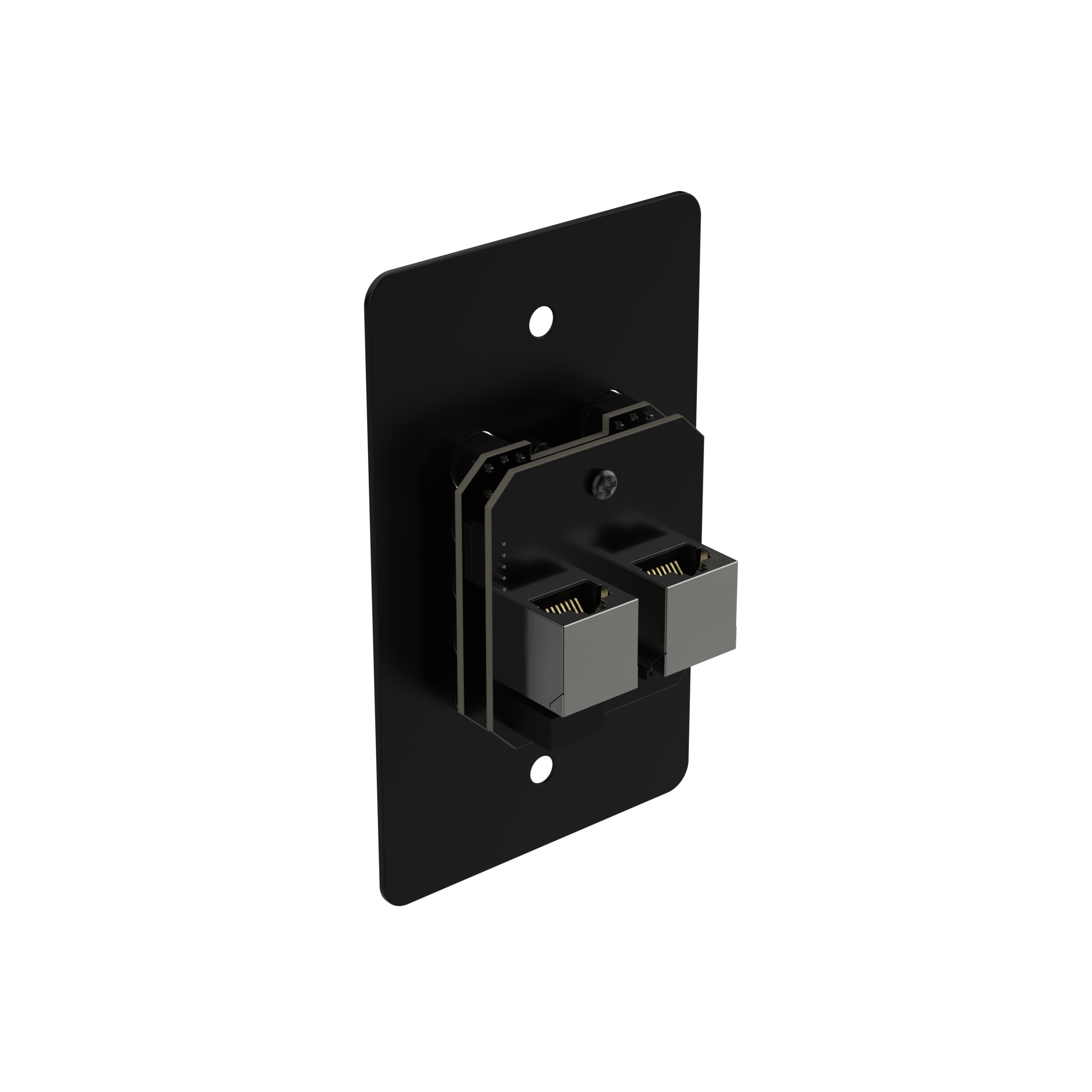

CS300108 | Markt: Vereinigte Staaten |

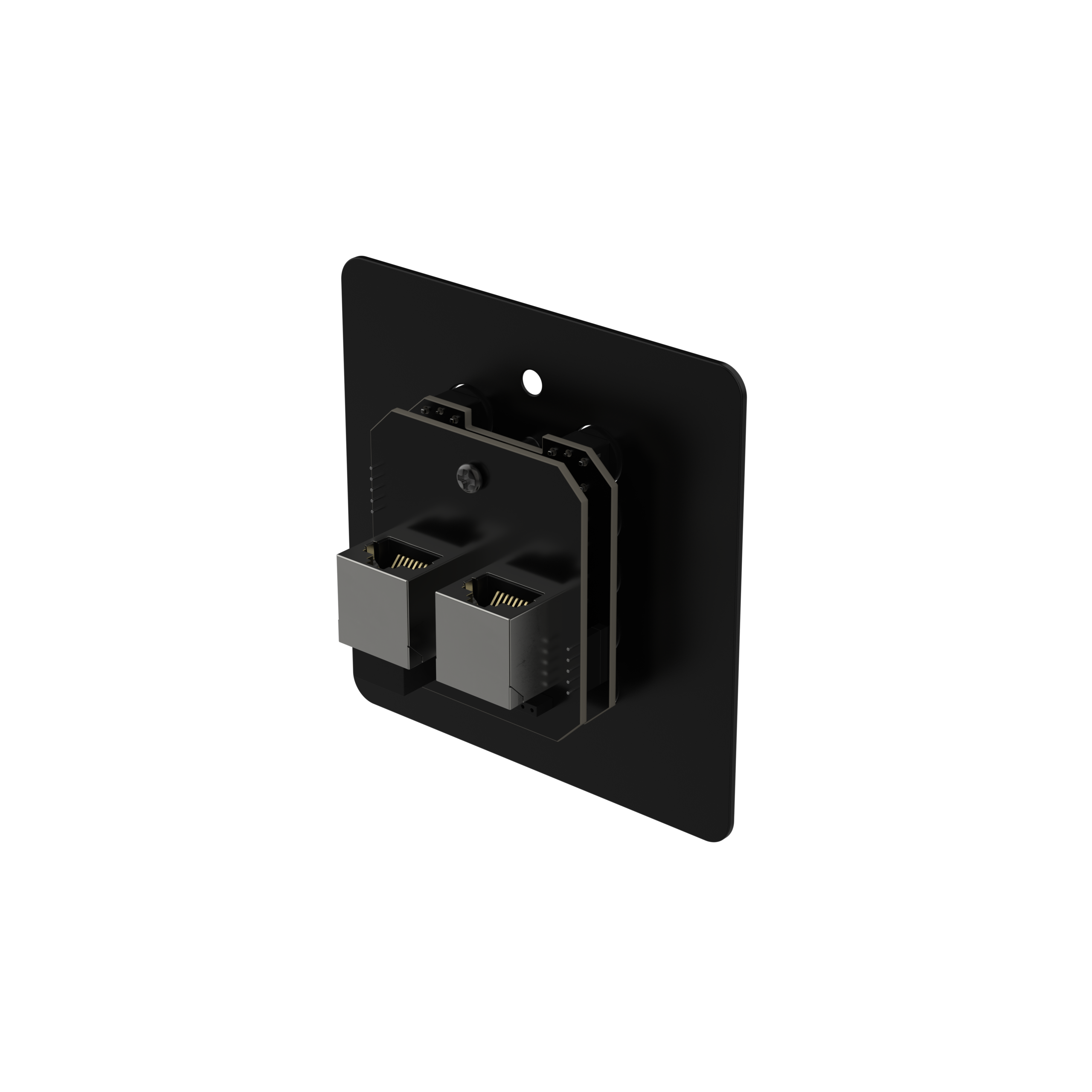

CS300106 | Markt: Europa |
Eigenschaften:

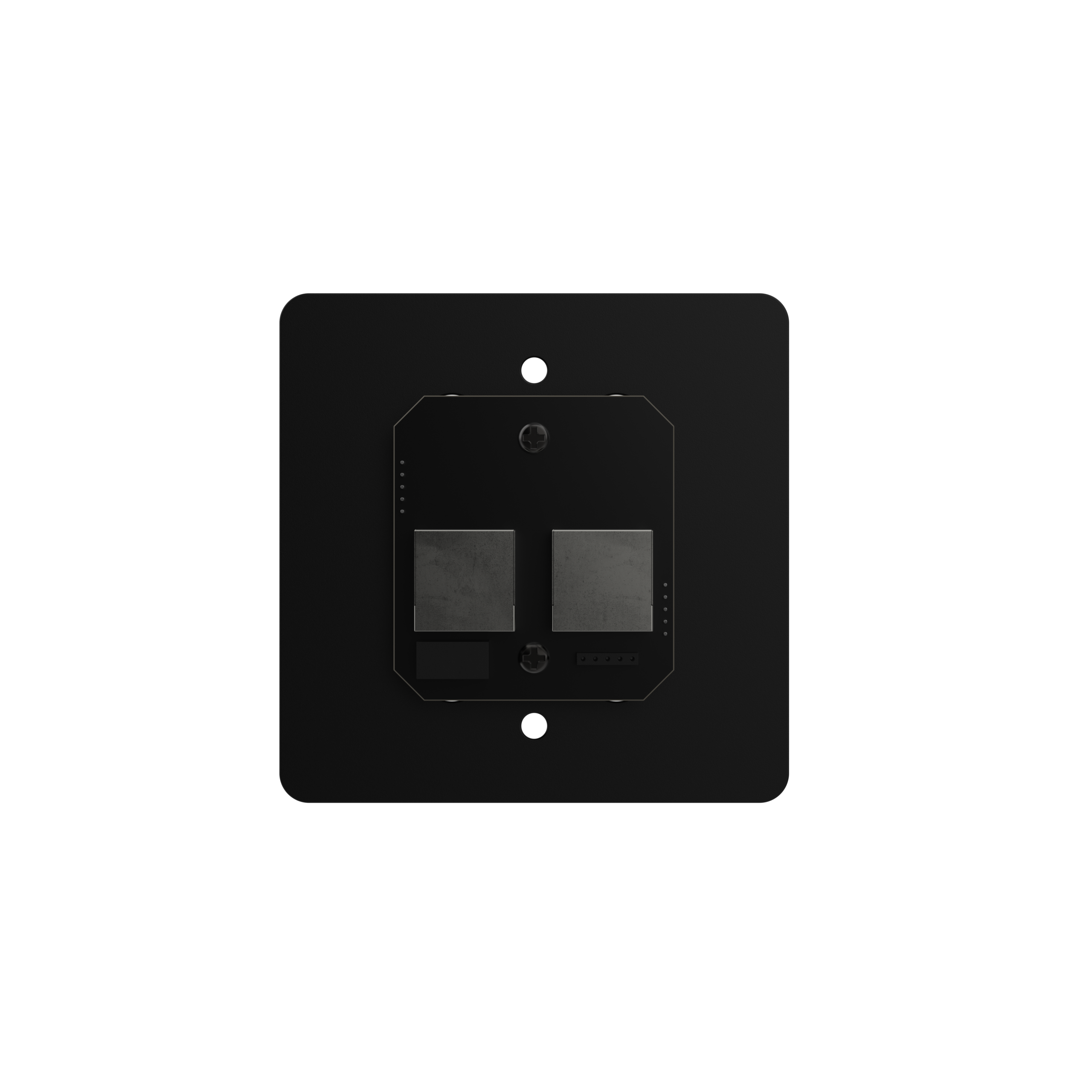

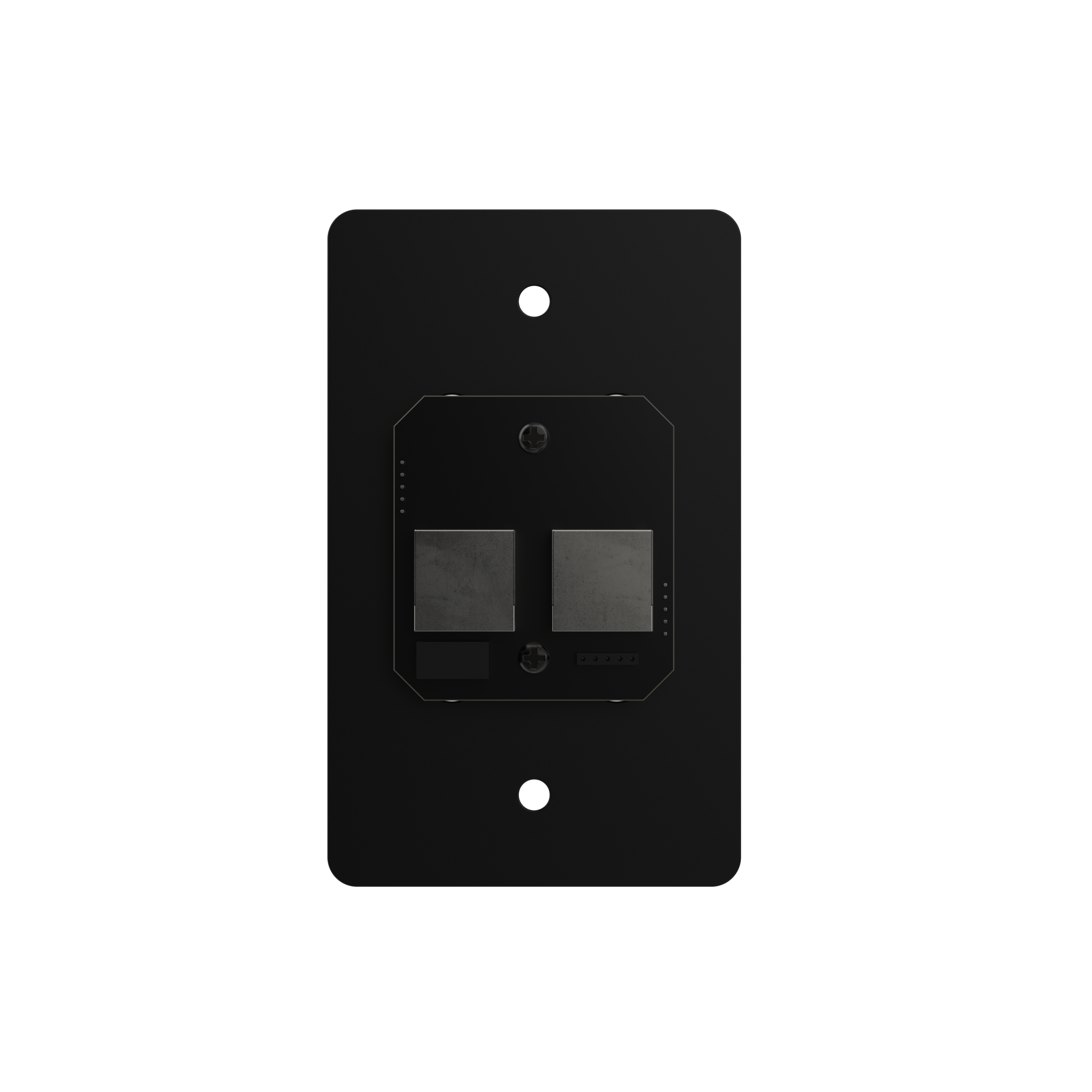

- Uses standard Cat 5E cable for connectivity
- Connect direct to MagicQ/QuickQ Rack/DIN products or GeNetix Gateway, GN5 or GN10’s no power injectors required
- Easy to daisy chain – up to ten 10Scene wallplates per chain
- Long distance – one 10Scene at 1000 metres or five 10Scenes in a chain at 300m
- Supplied in a dual pack containing 2 wall plates
